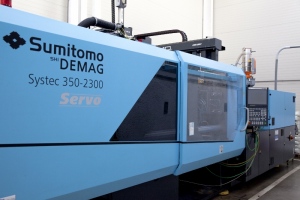

DEMAG 350
| Clamping force | kN | 3500 |
| Mold protection force | kN | - |
| Opening stroke | mm | 730 |
| Min. mold height | mm | 350 |
| Max. mold height | mm | 745 |
| Platen size (hor. x vert.) | mm | 1040x1060 |
| Distance between tie bars | mm | 720x720 |
| Max. mold weight | kg | 4700 |
| Max. mold weight on the moving side | kg | 2650 |
| Min. mold diameter | mm | - |
| Centering ring injection side | mm | Ø 160 H7 |
| Centering ring ejector side | mm | Ø 160 H7 |
| Thread/depth in the clamping plates | mm | M20/45 |
| Ejector path | mm | 200 |
| Ejector force | kN | 73 |
| Screw diameter | mm | 70 |
| Stroke volume | ccm | 1212 |
| Ejecton weight (PS) | g | - |
| Ejecton weight (PE) | g | - |
| Max. dosage lenght | mm | 315 |
| Specific injection pressure (při 400°C) | bar | 1877 |
| Core puller | - |
