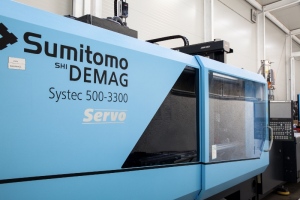

DEMAG 500
| Clamping force | kN | 5000 |
| Mold protection force | kN | - |
| Opening stroke | mm | 850 |
| Min. mold height | mm | 400 |
| Max. mold height | mm | 920 |
| Platen size (hor. x vert.) | mm | 1300x1300 |
| Distance between tie bars | mm | 920x920 |
| Max. mold weight | kg | 8700 |
| Max. mold weight on the moving side | kg | 5200 |
| Min. mold diameter | mm | - |
| Centering ring injection side | mm | Ø 200 H7 |
| Centering ring ejector side | mm | Ø 200 H7 |
| Thread/depth in the clamping plates | mm | M20/40 |
| Ejector path | mm | 260 |
| Ejector force | kN | 96 |
| Screw diameter | mm | 80 |
| Stroke volume | ccm | 1779 |
| Ejecton weight (PS) | g | - |
| Ejecton weight (PE) | g | - |
| Max. dosage lenght | mm | 354 |
| Specific injection pressure (při 400°C) | bar | 1855 |
| Core puller | - |
